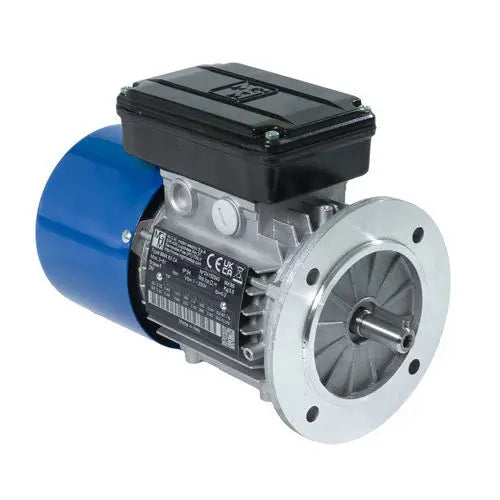

HPU E-motor - Asynchronous brake motor BA-BAX series

The most popular brake motor with AC brake, with fast intervention times and high braking capacities. Also, available in the version with DC brake.

- IEC Metric Motors from 71 to 315 frame size
- Totally Enclosed Fan Cooled (TEFC)
- BAX series includes single speed brake motors for continuous duty and IE2 / IE3 efficiency class (regulation EU 2019/1781). Alternatively, the BA series can be made in the ‘Enhanced
- Power’ version for intermittent duty only
- IP 54 enclosure (IP55 on request)
- F class insulation
- AC or and DC Brake
- Very high and adjustable brake torque
- Heavy Duty Cycle
- Low Maintenance
- Aluminium frame up to 132 frame size, cast iron frame from 160 to 315 frame size
- Cast iron flanges starting from 100 frame size
- Motors with NEMA dimensioned shafts and flanges available on request
- The brake moving element and the brake coil have a laminated magnetic nucleus to reduce losses and to allow very fast brake
- The cooling fan is fitted between the motor and the braking assembly
- Manual brake release screw
- Hex hole on nondrive shaft end for manual rotation (on request starting from 160 frame size)
- cCSAus mark and compliance to efficiency rule EISA (CC051A) and NRC (on request)
CCC mark and compliance to Chinese efficiency rule and China Energy Label (on request)
BIS certification – ISI mark (on request)
- EAC mark (on request)
- NOM mark (on request)
