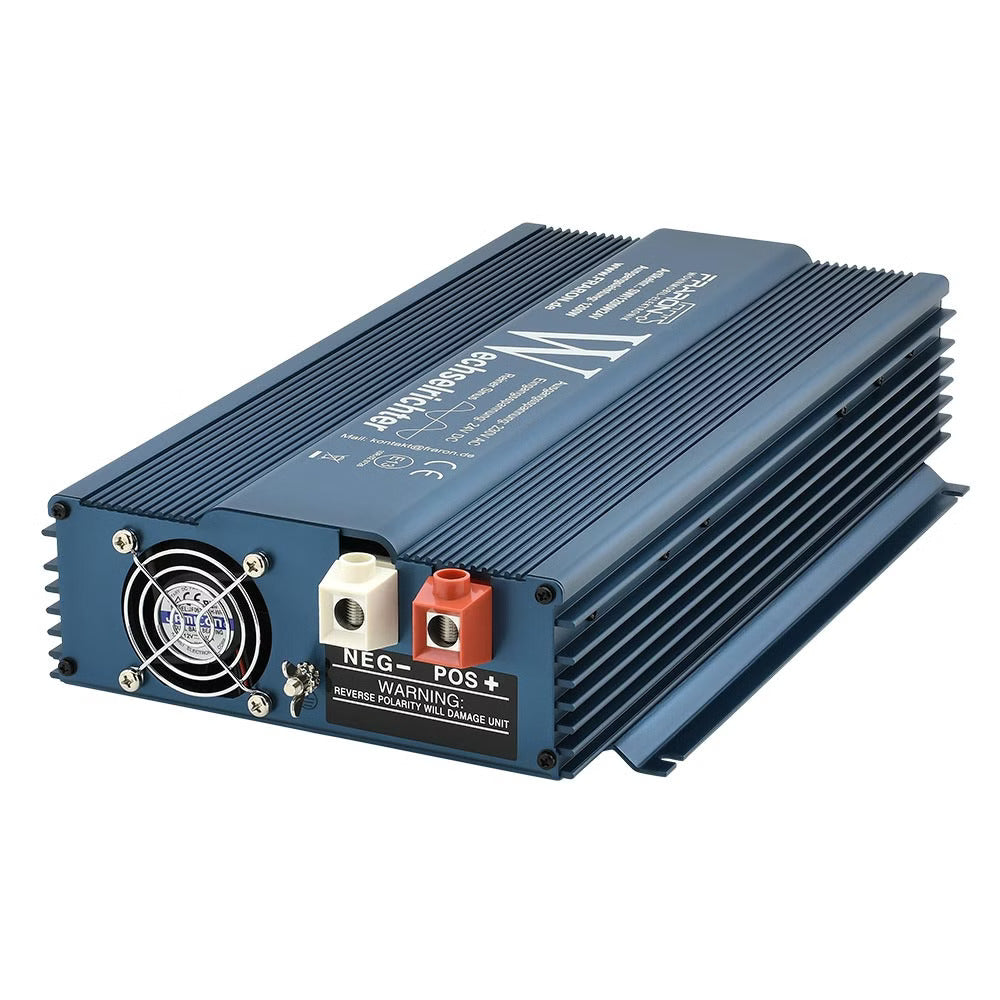

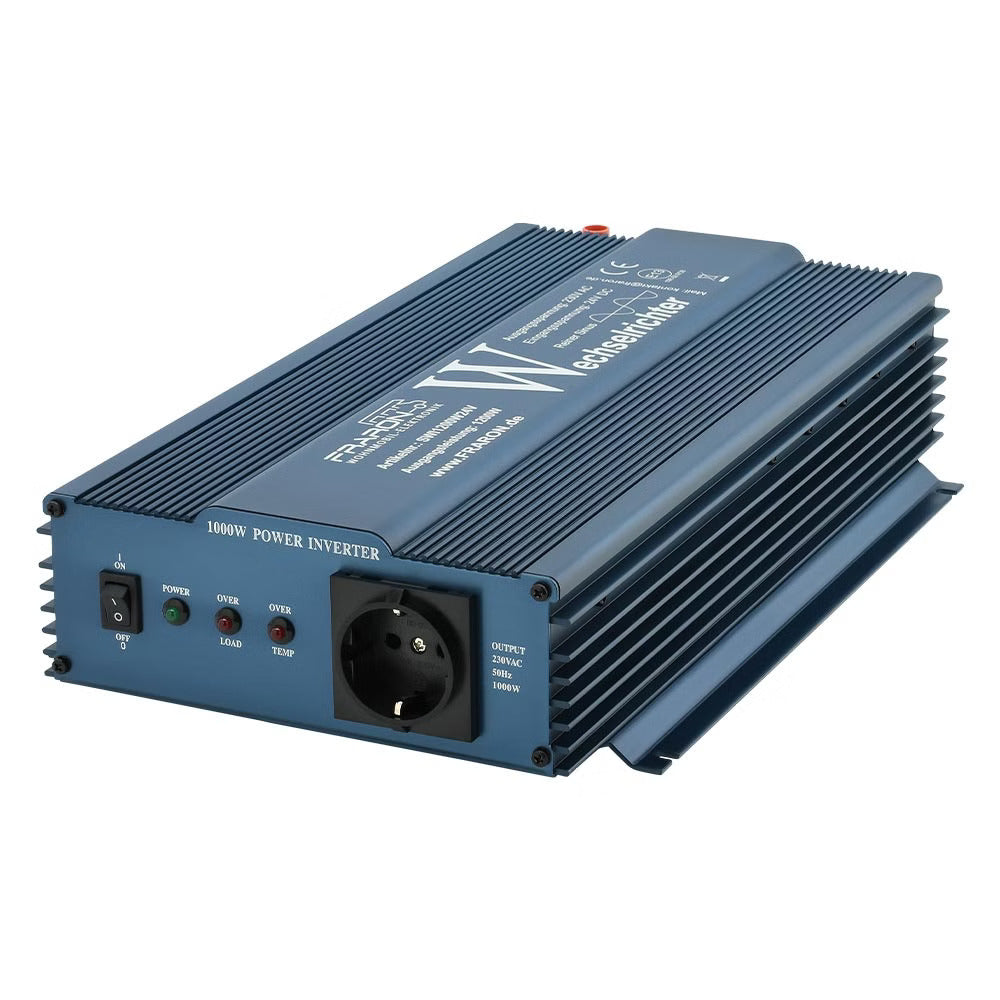

Inverter Fraron electronic SWI 1200W 24 V input 24VVDC output 230V AC

This inverter can be used wherever a pure sine wave voltage is required – such as from your home socket. A pure sine wave voltage is often required in the areas of measurement and control technology, control technology, audio and hi-fi applications, as well as sensitive electronics, to ensure the proper operation of the devices. Some televisions and stereo systems also require a pure sine wave to display a streak-free picture or to prevent humming noises in the speakers. Of course, all other devices with a power consumption of up to 1200 watts can also be operated, such as: coffee pod machines, fully automatic coffee machines, filter coffee machines, hair dryers, vacuum cleaners, toasters, microwaves, lighting, fans, game consoles, DVDs, videos, PlayStations, X-Boxes, chargers for digital cameras, cell phones, video cameras, tools, motors, gardening equipment, heating systems, studio flash systems, etc. Inductive and capacitive loads are no problem for this type of converter.

Rated power: 1000 watts
extended power level: 1200 watts for 15 minutes
2000 watts short-term peak (25ms)
20 to 33V DC input voltage range
quartz-precise 230V AC, 50 Hz output voltage
FI residual current device integrated in the AC output
reiner Sinus
Distortion factor max. 3%
Efficiency max. 90%
Standby Verbrauch ca. 0,5A
Alarm signal at approx. 21.4V battery voltage
Deep discharge protection , shutdown of the consumer at 20V battery voltage
Overvoltage protection, shutdown at more than 33V DC at the input
the 230V AC output is short-circuit proof
the 24V DC input is protected against reverse polarity by fuses
Automatic shutdown of the voltage converter in case of overload
Temperature protection, protective shutdown at approx. 60°C in the housing
Temperature range: 0-40°C
Microcontroller controlled
Temperature and load controlled fan, the fan only runs when needed
Power switch on the device (on - off switch)
elegant aluminum housing with blue finish
Dimensions H=85mm, W=240mm, L=395mm
4.6kg weight including connection cable (without packaging)
E-mark (e-mark) This mark indicates that the device may be used in vehicles on land and water
Service is provided directly in our house
