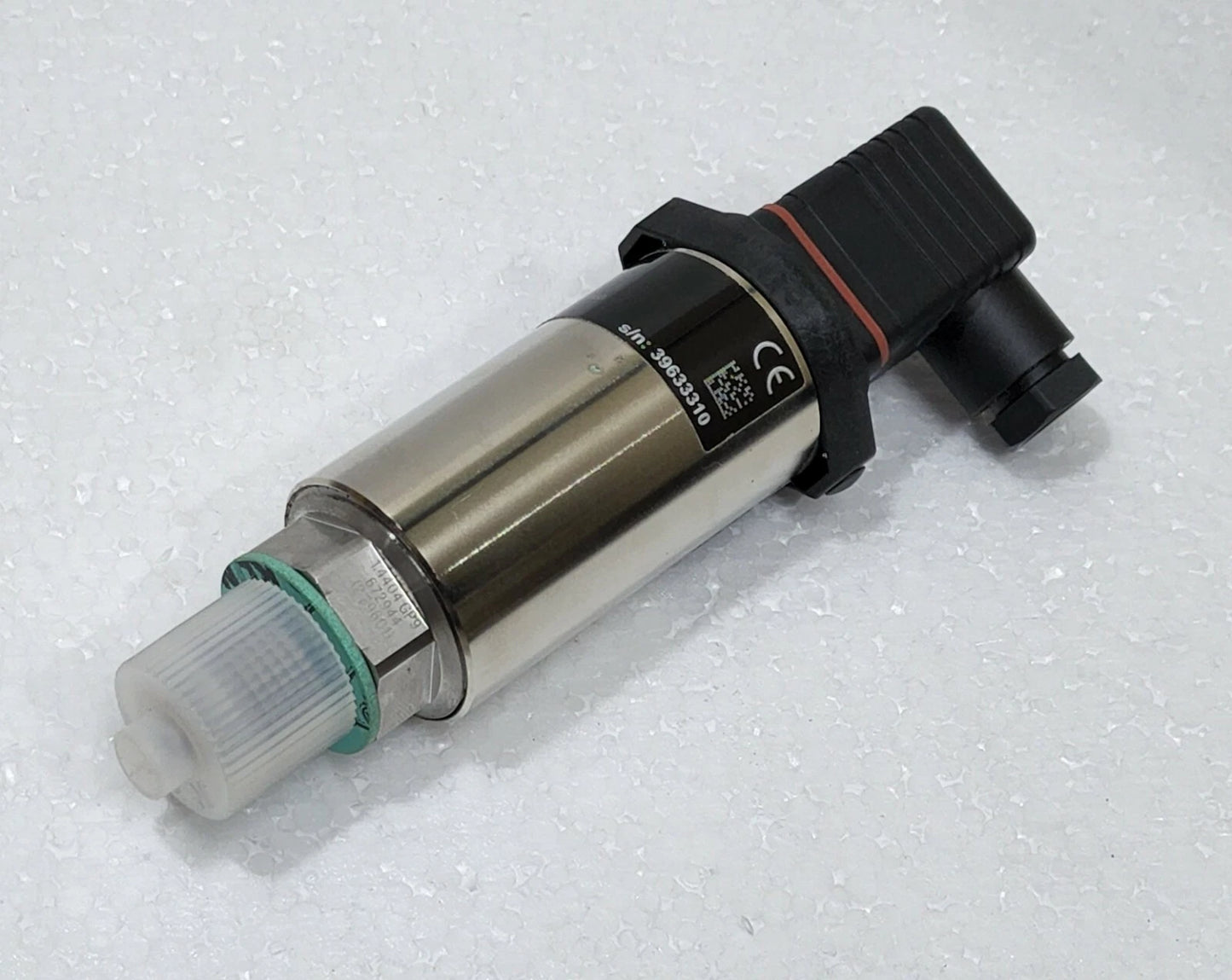

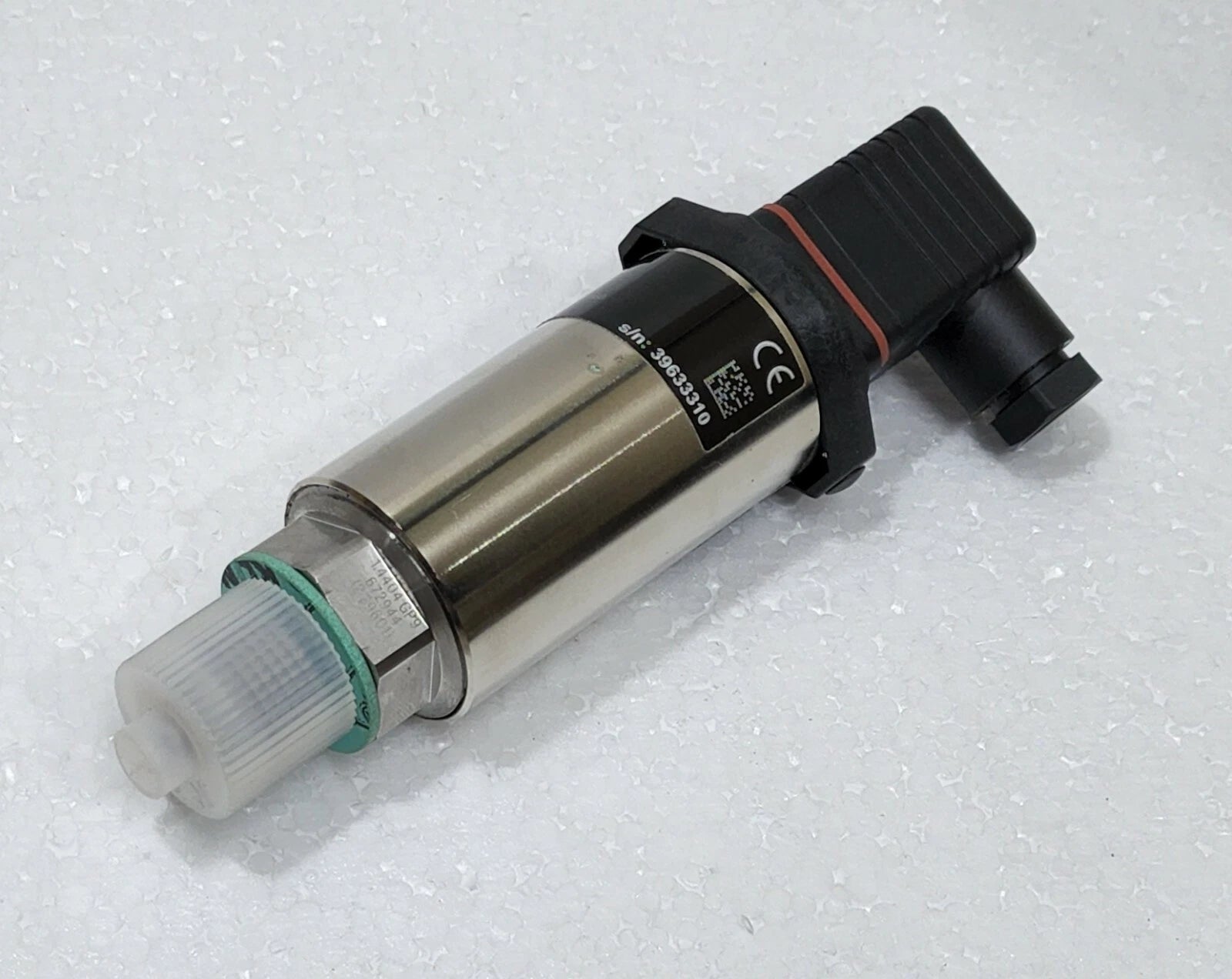

The VEGABAR 14 pressure transmitter can be used universally for measurement of gases, vapours, and liquids. The small pressure transmitter offers maximum reliability. The VEGABAR 14 is an economical solution for a multitude of applications in all areas of industry.
Measuring ranges -1 … +60 bar/-100 … +6000 kPa (-14.5 … +870 psig) Smallest measuring range +0.1 bar/+10 kPa (+1.45 psig) Deviation in characteristics 0.3 % Process fitting Thread from G½, ½NPT Process temperature -40 … +100 °C (-40 … +212 °F) Ambient, storage and transport temperature -40 … +80 °C (-40 … +176 °F) Operating voltage 12 … 36 V DC
